How Do You Select a TFT LCD Module Interface?

Choose the TFT LCD module interface that your processor natively supports at the required resolution, refresh rate, cable length, and power budget. RGB is practical for simple, short-distance embedded displays; MIPI DSI delivers compact, high-bandwidth mobile designs; LVDS provides reliable differential transmission for larger industrial, medical, and automotive displays.

What Is a TFT LCD Module Interface?

A TFT LCD module interface is the electrical connection that transfers pixel data, timing signals, control commands, and sometimes touch information from a host processor to the display. The right interface must match the host chip, panel timing, resolution, frame rate, PCB layout, and environmental requirements.

A complete display module contains more than the LCD glass. It typically includes a TFT panel, driver ICs, backlight, flexible printed circuit (FPC), interface connector, and optional touch panel. The interface determines how the system sends image data from an MCU, MPU, SoC, FPGA, or display controller to those driver ICs.

For embedded hardware teams, interface selection is rarely a display-only decision. It affects processor selection, pin count, memory bandwidth, PCB layer count, EMI performance, connector design, cable routing, software drivers, and production risk.

The most common options include:

• RGB parallel: Separate digital data lines and timing signals.

• MIPI DSI: High-speed serial differential lanes designed for compact devices.

• LVDS: Differential serial signaling with strong noise resistance.

• SPI: A lower-pin-count serial option for small or low-refresh displays.

• HDMI/eDP: Video-oriented interfaces typically used with more capable processors or external display boards.

CDTech supports standard and custom TFT LCD display modules with interface options tailored to industrial control, medical equipment, smart-home products, automotive systems, and instruments.

How Does RGB Interface Work in Embedded Displays?

RGB parallel sends red, green, blue, clock, horizontal sync, vertical sync, and data-enable signals directly from the host processor to the LCD module. It is simple to understand and integrate, but it uses many pins and is best for short PCB or FPC connections.

RGB interfaces are commonly available in 16-bit, 18-bit, and 24-bit formats. A 24-bit RGB interface typically uses eight bits per color channel, enabling up to 16.7 million color combinations. Depending on the panel, the host may also provide HSYNC, VSYNC, DE, and pixel-clock signals.

RGB is often a strong choice when a microcontroller or MPU includes an LCD-TFT controller. It enables direct framebuffer output without requiring a separate high-speed serial display bridge. This can reduce software complexity and make bring-up easier for medium-resolution embedded systems.

However, RGB becomes more demanding as resolution and refresh rate rise. A 24-bit RGB bus consumes a significant number of GPIO pins, and parallel single-ended traces can be more susceptible to skew, crosstalk, and electromagnetic interference than differential interfaces.

RGB is usually well suited to:

• HMI panels, home appliances, control terminals, and instruments.

• Short-distance board-to-display integration.

• QVGA, WQVGA, WVGA, and selected 800 × 480 or 1024 × 600 designs.

• Host processors with native RGB/LTDC output.

For a cost-conscious industrial controller, an RGB TFT LCD module can offer an effective balance of familiar design methods, color performance, and component simplicity.

What Makes MIPI DSI Suitable for High-Resolution Products?

MIPI DSI transfers display data over high-speed differential lanes, reducing pin count while supporting high resolutions and compact hardware. It is ideal for application processors, mobile-class SoCs, handheld devices, and thin products where bandwidth efficiency, low power, and limited PCB space are priorities.

MIPI DSI commonly uses one clock lane plus one to four data lanes. Rather than driving dozens of parallel RGB signals, the host serializes pixel data into fast differential streams. This reduces connector width and routing congestion while allowing substantial display bandwidth.

MIPI DSI is particularly valuable for products using Android, Linux, or advanced embedded operating systems. Many ARM application processors offer native MIPI DSI output, making it a natural fit for tablets, portable medical devices, smart terminals, consumer electronics, and compact smart-home displays.

The trade-off is design complexity. Engineers must verify lane count, lane rate, video or command mode, panel initialization sequence, DCS commands, display timing, and software driver compatibility. Poor impedance control or incorrect lane routing can cause intermittent image loss, tearing, flicker, or failure to initialize.

MIPI DSI is usually preferred when the product needs:

• A compact FPC connector and reduced pin count.

• High pixel density or 720p-and-above resolution.

• Battery-conscious operation.

• A short host-to-panel connection.

• A processor that already has native MIPI DSI support.

A CDTech MIPI display module should be selected only after confirming the host’s supported lane configuration, maximum lane speed, operating system driver framework, and required panel timing.

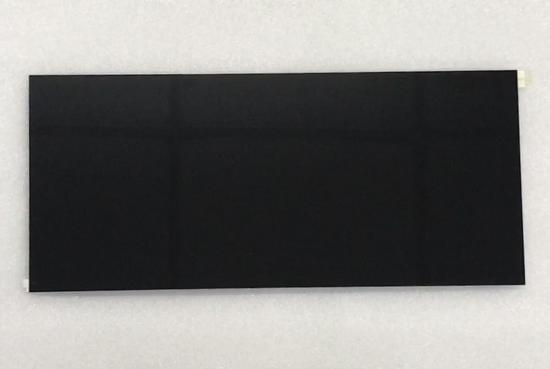

Why Is LVDS Often Used for Industrial Displays?

LVDS uses differential signal pairs to transmit display data with strong resistance to electrical noise, making it a dependable choice for larger displays, long cable runs, and demanding industrial environments. It is widely used in industrial control, medical systems, transportation, automotive equipment, and machine interfaces.

Unlike traditional parallel RGB signaling, LVDS sends data through matched positive and negative signal pairs. The receiver detects the voltage difference between the two conductors, which improves immunity to common-mode interference. This makes LVDS more robust in systems containing motors, relays, inverters, pumps, high-current wiring, or RF sources.

LVDS is commonly associated with 7-inch to larger display modules, although implementation depends on the panel and host platform. It can support higher resolutions than typical RGB designs while maintaining stable signaling across longer FPC or shielded cable connections.

LVDS designs still require disciplined engineering. Use controlled differential impedance, matched pair lengths, suitable grounding, proper shielding where necessary, and a connector rated for the expected mechanical environment. Do not assume that an LVDS panel can connect directly to an RGB-only processor without a compatible display bridge.

Which Interface Matches Your Main Control Chip?

Choose the interface that the main control chip supports natively at the target resolution and refresh rate. Native connectivity lowers BOM cost, reduces software risk, simplifies debugging, and avoids an additional bridge IC that can introduce power, latency, board-space, and sourcing complications.

Start selection with the processor datasheet rather than the display catalog. Identify every available display output and determine its practical limits, not merely its theoretical maximum. Check the supported pixel clock, bus width, MIPI lane count and speed, LVDS output availability, DMA architecture, external memory bandwidth, and operating-system driver support.

Use this practical selection logic:

• MCUs with LTDC or parallel display controllers: Start with RGB modules.

• Application processors with MIPI DSI: Prioritize MIPI DSI panels.

• Industrial x86, ARM SBCs, or SoCs with LVDS: Choose LVDS modules for robust integrated displays.

• HDMI-only systems: Consider an HDMI display, converter board, or dedicated display controller.

• FPGA-based designs: Compare available I/O, serializer resources, memory bandwidth, and required EMI performance before choosing RGB, MIPI, or LVDS.

A bridge IC can solve interface mismatches, but it should be a deliberate engineering choice. For example, an RGB-to-LVDS bridge may enable a large industrial panel, but it adds component cost, PCB space, power consumption, software configuration, and validation work.

Before ordering samples from CDTech, provide the host processor part number, operating system, display output type, desired resolution, frame rate, available connector space, and preliminary schematic. This enables a more accurate module and interface recommendation.

How Do Resolution and Frame Rate Affect Bandwidth?

Resolution and frame rate determine how much pixel data the display interface must transport each second. Higher resolution, color depth, and refresh rate require more bandwidth, faster clocks, more MIPI lanes, or a more capable serial interface.

A useful first estimate is:

For example, a 1024 × 600 display at 60 Hz with 24-bit color needs approximately 885 Mb/s of active video data before blanking intervals and protocol overhead. The real interface requirement is higher because horizontal and vertical blanking, timing margins, encoding, and transmission overhead must be included.

This is why interface selection cannot rely only on display size. A small, high-density 1080p panel may need far more bandwidth than a larger 800 × 480 industrial screen. Likewise, a 90 Hz or 120 Hz user interface has significantly higher throughput requirements than a conventional 60 Hz product.

When reviewing a panel datasheet, validate:

• Active resolution and recommended refresh rate.

• Pixel clock and total horizontal/vertical timing.

• RGB bus width or MIPI lane requirements.

• LVDS channel configuration and mapping.

• Supported color depth.

• Host memory bandwidth and framebuffer strategy.

Avoid selecting an interface at its absolute theoretical limit. Engineering margin helps accommodate temperature variation, cable loss, timing tolerances, future UI changes, and display sourcing alternatives.

What PCB and Cable Rules Prevent Display Failures?

Controlled impedance, matched differential pairs, short signal paths, clean power delivery, and correct grounding prevent most TFT LCD interface failures. RGB requires tight clock and data timing; MIPI and LVDS require impedance-controlled differential routing, length matching, and careful connector-to-panel layout.

Display instability often appears as flicker, snow, random lines, color shifts, intermittent black screens, unstable touch behavior, or failure after environmental testing. These symptoms may be caused by signal integrity, not a defective LCD panel.

For RGB routing, keep the pixel clock trace short and clean, minimize data-line skew, avoid unnecessary vias, and provide a stable return path. For MIPI DSI and LVDS, follow the processor and panel layout guides for differential impedance, pair-to-pair spacing, length matching, AC coupling requirements, and ESD protection.

Power is equally important. The LCD logic supply, analog rails, backlight LED supply, touch controller, and reset line must follow the specified start-up and shut-down sequence. A noisy or undersized backlight supply can create visible flicker even when the image interface is functioning correctly.

When Should You Use a Driver Board or Display Bridge?

Use a driver board or bridge when the host interface does not match the selected panel, when the product needs HDMI input, or when the system requires simpler integration. It is especially useful for prototypes, retrofits, external monitors, and platforms without native RGB, MIPI, or LVDS output.

A driver board can convert HDMI, USB, DisplayPort, RGB, or other input formats into the panel’s native interface. This approach can accelerate evaluation because it separates display selection from low-level processor interface development. It may also simplify use with PCs, single-board computers, and media devices.

However, a driver board is not automatically the best production solution. It adds cost, thickness, thermal load, connector count, power requirements, and potential supply-chain dependencies. For high-volume embedded designs, direct connection to a native panel interface is often more efficient.

Choose a driver board when:

• The source device outputs HDMI or DisplayPort only.

• You need a rapid prototype or demonstration unit.

• A legacy platform cannot natively drive the target panel.

• The display is external rather than tightly integrated into the product enclosure.

CDTech can help evaluate whether a direct interface module, an HDMI display solution, or a customized driver-board architecture best fits the product’s lifecycle and production volume.

Why Should Environmental Requirements Influence Interface Selection?

Environmental conditions affect signal integrity, backlight reliability, mechanical connection, and module lifetime, so interface choice must account for temperature, vibration, cable length, EMI exposure, and installation location. LVDS is often favored in electrically noisy or long-distance installations, while MIPI suits compact internal connections.

A display installed beside motors, pumps, switching power supplies, ignition systems, or high-frequency radios faces different risks than a display mounted inside a quiet consumer device. Industrial and automotive designs may also require wide-temperature operation, vibration resistance, optical bonding, high brightness, anti-glare treatment, conformal protection, and stronger FPC retention.

CDTech Expert Views

“The best display interface is not the one with the highest published bandwidth; it is the one that delivers stable image performance throughout the product’s real operating life. Start with the host processor, then validate timing, cable architecture, EMI exposure, thermal conditions, and mechanical constraints together. A correctly matched standard module is often faster and lower risk than an over-customized solution. When customization is required, define interface, optics, touch, backlight, and environmental testing requirements before tooling decisions.”

CDTech’s experience in industrial, medical, automotive, smart-home, and instrumentation projects helps engineering teams align interface decisions with the actual use environment rather than only the laboratory prototype.

What Are the Most Common TFT LCD Module Questions?

Can RGB support a 1024 × 600 display?

Yes, many host processors can drive 1024 × 600 RGB panels at 60 Hz, but success depends on pixel-clock capability, bus width, PCB routing, memory bandwidth, and short connection length. Confirm the exact panel timing and processor display-controller limits before design freeze.

Does MIPI DSI always use less power than LVDS?

Not always. MIPI DSI can be highly power-efficient in compact high-speed designs, but total power depends on the processor, lane rate, panel driver, backlight, display brightness, software behavior, and bridge ICs. Compare complete system power rather than interface type alone.

Is LVDS better than RGB for every industrial product?

No. LVDS is excellent for noise immunity and longer cable routes, but RGB may be simpler and more economical for a compact low-to-medium-resolution control panel with a native RGB host. Select based on the full system requirement, not application category alone.

Could a display bridge create compatibility problems?

Yes. A bridge can introduce initialization dependencies, timing limitations, additional power rails, firmware configuration, and sourcing risk. It is useful when necessary, but a native processor-to-panel interface is generally easier to validate and maintain in high-volume production.

How Should You Finalize Your Display Interface Choice?

Finalize the interface after validating processor support, bandwidth margin, panel timing, routing feasibility, environmental exposure, software drivers, and supply continuity. Select RGB for straightforward native embedded designs, MIPI DSI for compact high-bandwidth products, and LVDS for robust larger-display applications.

Use this actionable process:

1. Define display size, resolution, brightness, touch, viewing angle, and operating environment.

2. Confirm the main processor’s native interface, pixel-clock limit, memory bandwidth, and driver availability.

3. Calculate bandwidth at the required resolution, color depth, and refresh rate with margin.

4. Review PCB routing, connector space, FPC length, EMI sources, and power sequencing.

5. Request a matched module datasheet, interface timing, initialization information, and sample from CDTech.

6. Validate the display in the final enclosure, not only on an open bench.

The right TFT LCD module interface reduces redesign cycles, improves image stability, and protects product reliability. Match the display to the hardware architecture early, then validate the complete electrical and mechanical system before committing to volume production.
